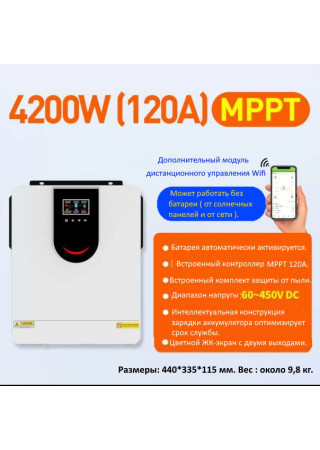

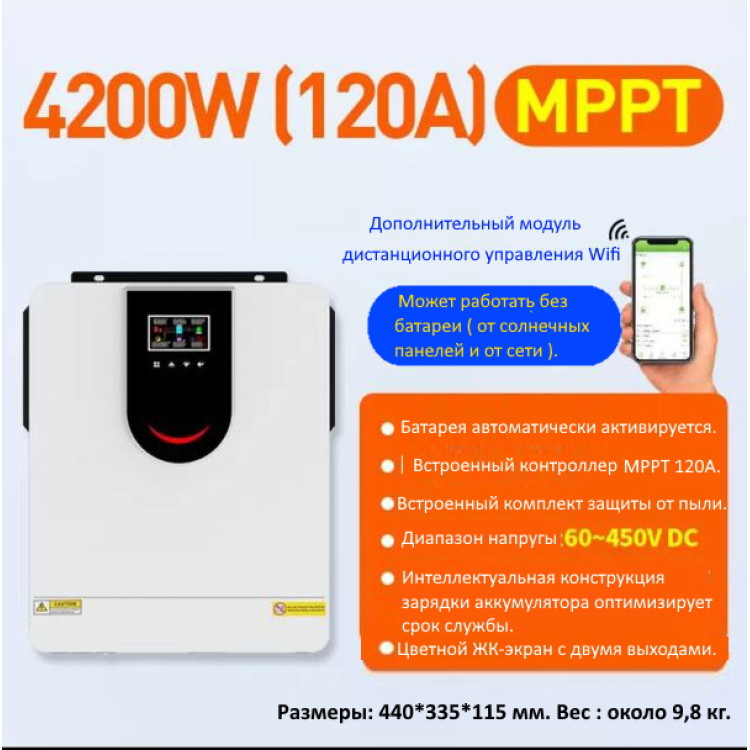

Гібридний інвертор 24V 4,2 KW 120A MPPT

Модель :SY-4.2KW-24V

PV INPUT:
Nominal operating voltagw: 240Мвс
Vmax Pv: 500Vdc
PV input voltage range : 60-450Мвс
Maximum Solar Charging Current :120A

GRID/AC OUTPUT:
Nominal Output Voltage : 220/230/240Vac
Feed-in Grid Voltage Range: 195-253Vac
Feed-in Grid Frequency Range : 49-51+-1HZ
Nominal Output Current :18.2A
Power Factor Range :>0.99
Maximum Conversion Efficiency (DC/AC): 97%
Nominal Operating Frequency: 50.60HZ

TWO LOAD OUTPUT POWER:
Full Load : 4200W
Maximum Main Load : 1400W
Main Load Cut Off Voltage :26Vdc
Main Load Return Voltage : 27Vdc

AC INPUT:
Nominal operating voltage : 230Vac
Maximum input current : 30A
Nominal operating frequency : 50/60Hz
Surge power : 8400VA
Maximum AC Charging Current : 100A

BATTERY :
Battery voltage 24Vdc
Maximum battery current : 175A
